Terminal Box LK

Special features

  • Load-bearing and stable due to the all-round edged frame
  • spacious, with large installation depth (total external depth - 13 mm)
  • Easy to equip due to large clear opening (W/L - 12 mm) of the terminal box
  • Easy to assemble due to removable clip nuts and captive cover screws
  • Secure against access due to various types of closure
  • Flexible due to optional assembly with top-hat rail or mounting plate/mounting plate
  • Flexible for your application, as available in many sizes

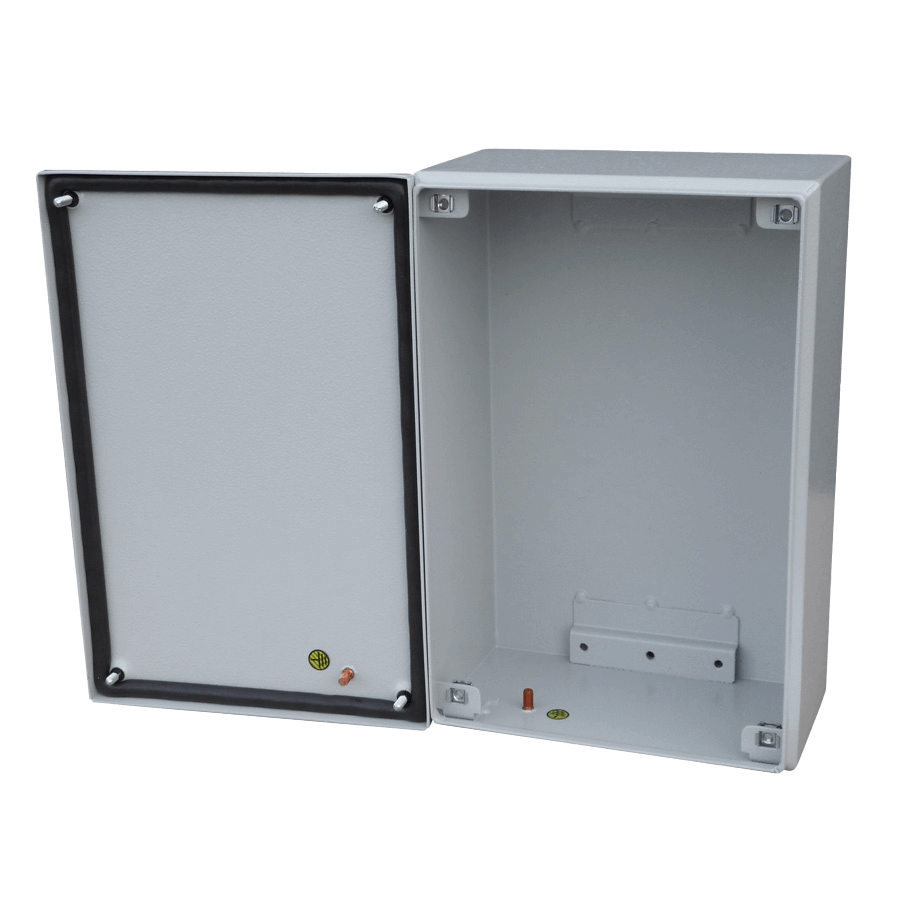

Terminal boxes LK high open

Further information:

Standard sizes of the terminal boxes LK
Drawing LK
Instruction LK

Further information:

Standard sizes of the terminal boxes LK
Drawing LK
Instruction LK

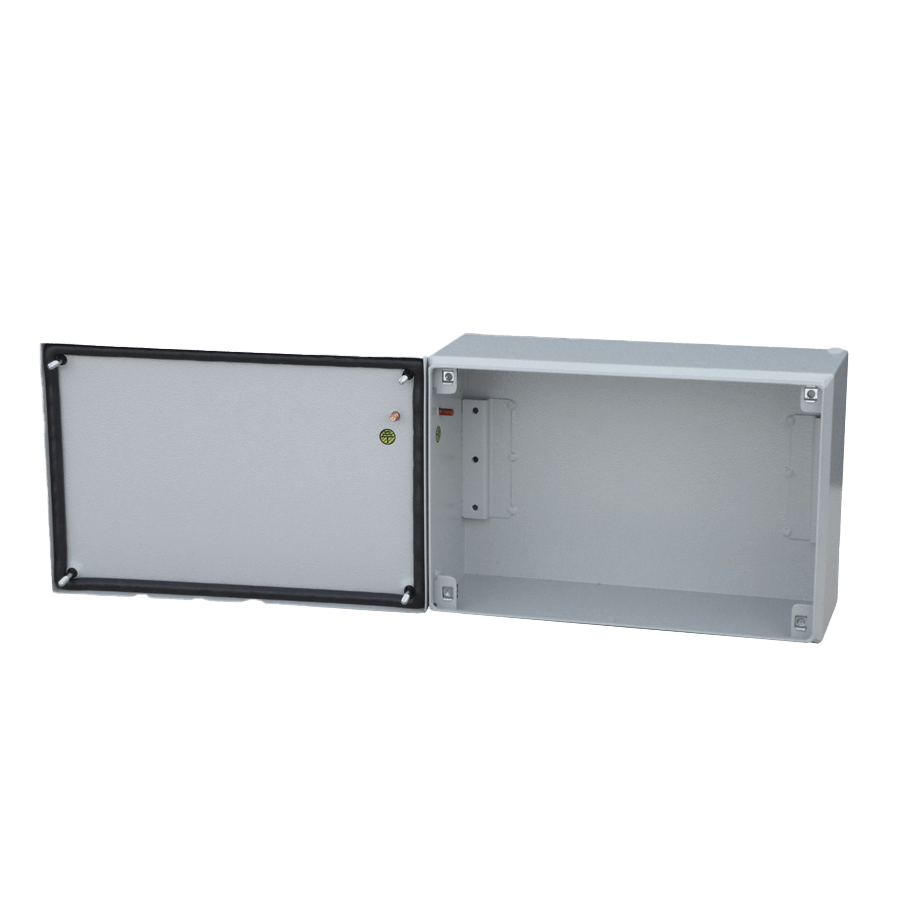

Terminal boxes LK open

Technical data

  • Protection class IP66
  • Impact resistance grade: IK09
  • Surface: powder coating in RAL 7035, textured
  • Salt spray test according to DIN EN ISO 9227: 450 hours
  • RoHS compliant
  • Terminal box complies with DIN EN 62208:2012-06

Product description

Terminal boxes are suitable for the following areas of application, for example: Wiring technology, measurement and control technology, control engineering, lift construction, mechanical engineering, plant construction and crane construction, electronics industry, energy industry and wind power.

  • made of high-quality sheet steel
  • folded frame
  • Earthing possibility M6x12 on enclosure and door
  • High-quality and environmentally friendly powder coating (RAL 7035 structure), pre-treatment by phosphating and rinsing with fully demineralised water.
  • Closure by means of captive cover screws
  • Lid with all-round, seamlessly foamed-in seal
Terminal boxes LK, for

Scope of delivery

  • Housing with cover on
  • Mounting accessories
  • On request: Declaration of conformity

Optional accessories:

  • Top-hat rail 35x7.5 mm
  • Top-hat rail 35x15 mm
  • Mounting plate made of galvanised sheet steel

Our additional strength is the precise manufacture of customised terminal boxes in special enclosure construction. Let us know your ideas.
