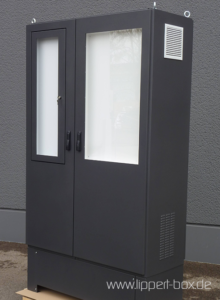

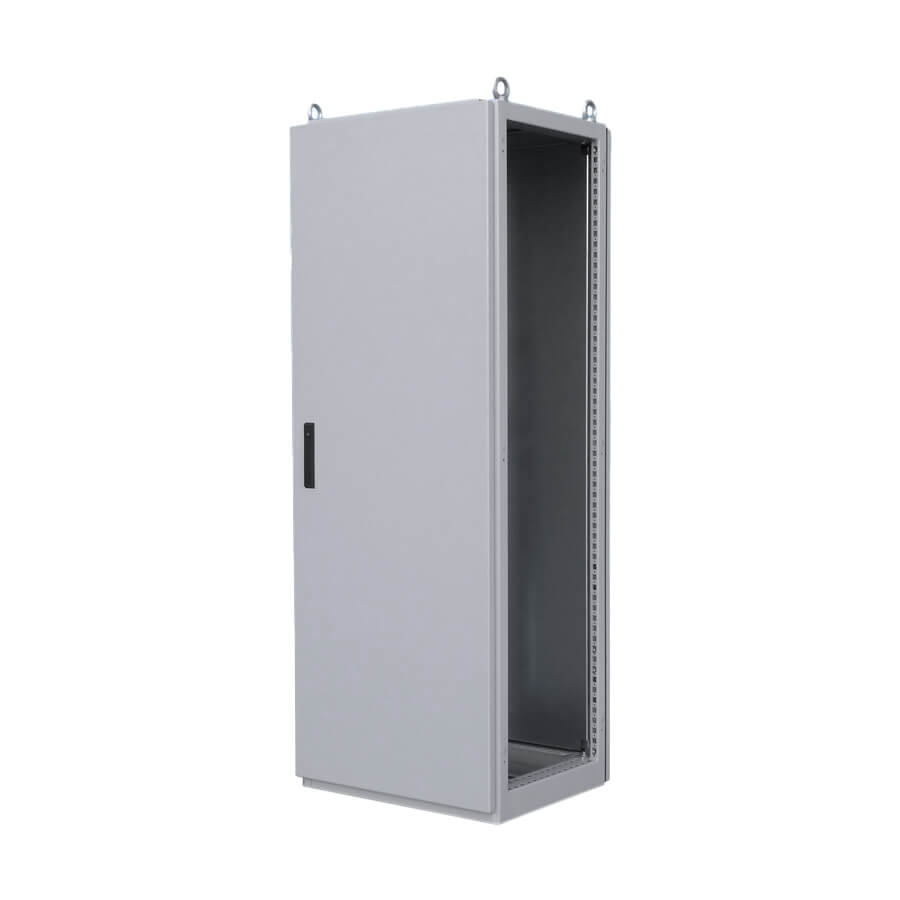

Baying Enclosures LA

Special features

Further information

Technical data

Protection class IP55
Impact resistance grade: IK09
Surface: powder coating in RAL 7035, textured; mounting plate and flange plate sendzimir-galvanised sheet steel
Salt spray test according to DIN EN ISO 9227: 450 hours
RoHS compliant
Baying enclosure complies with DIN EN 62208:2012-06

Product description

Examples of use: In control engineering, lift construction, mechanical engineering, plant construction, crane construction, in measurement and control technology, wiring technology, electronics industry, energy industry including renewable energies, etc.

made of high-quality sheet steel

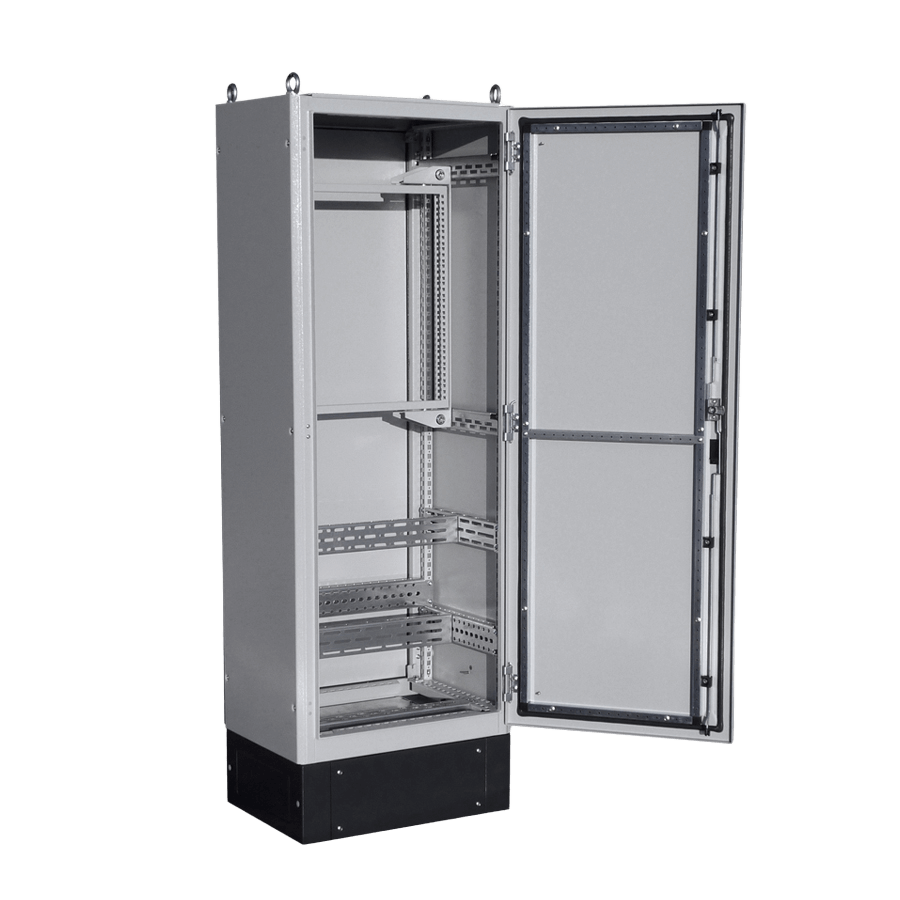

torsion-resistant coated frame with system perforation for flexible extension, suitable for standard DIN installation components
the high-quality environmentally friendly powder coating of the sheet steel parts with special pre-treatment (phosphating and rinsing with fully demineralised water) guarantees excellent corrosion protection and paint adhesion, standard colour RAL 7035 (light grey) structure
Over-edged frame offers protection against dirt and water ingress when opening the door

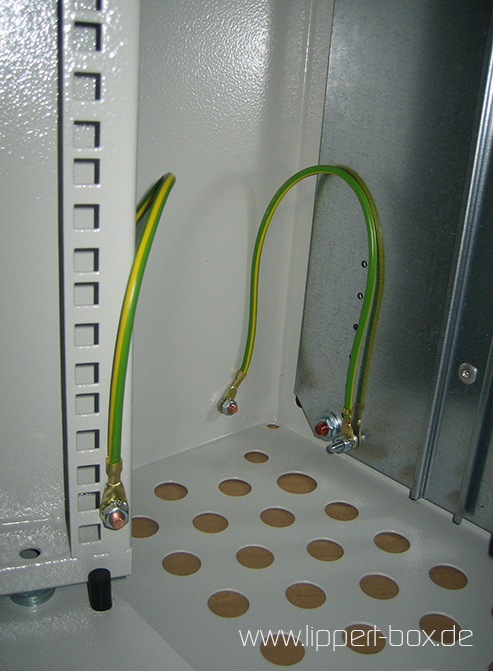

With earthing option on cabinet, door, mounting plate/mounting plate and all removable parts

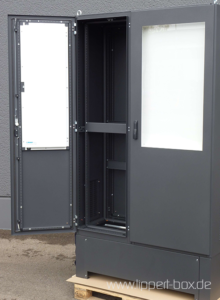

Door(s) with all-round galvanised square tube frame incl. grid holes, offers optimum stability and assembly options

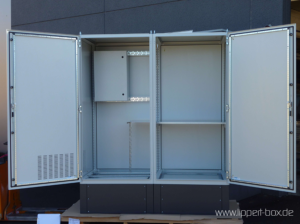

Doors can be hinged on the left and right of the baying unit
Door(s), rear wall, roof (and optional side walls) with all-round seamless foamed-in seal

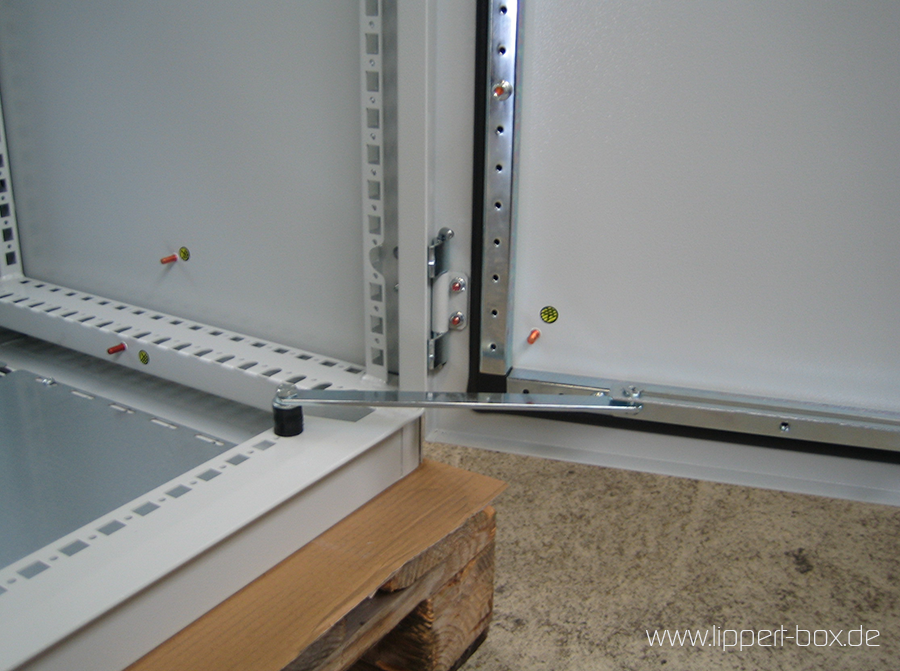

Door opening angle 120
Sash lock/push bar lock 3 mm double bit
Flange plate 2-parts, in the base, removable or adjustable for passage of cables or similar, with clamping rubber 20x20 mm
Mounting plate/fitting panel made of galvanised sheet steel, edged for stiffening, depth-adjustable and can be used over the entire surface thanks to flush-mounted retaining system
removable, detachable roof
Rear wall (and the optional side walls) suitable for one-man assembly
Standard tools are sufficient for assembling the modular cabinets
optional: with matching plinth, side panels and extensive range of extensions - our sales staff will be happy to advise you!
